PRODUCTS
We will become the emerging industry that continuously develops
the technology and improves the product quality.
WELDING TORCH

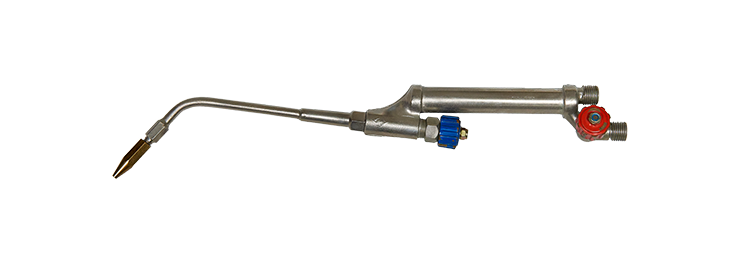

SH100
|
Mini Welding Torch
Length : 270mm / Weight : 260g
Tip No. Welding Capacity Gas Pressure(Mpa)
O2 LPG
10 Thickness Plate 0.05 ~ 0.08 0.01 up
16 Thickness Plate 0.01 up
25 Thickness Plate 0.015 up
40 0.4~1.0 0.02 up
SH101
|
Small Type Welding Torch
Length : 350mm / Weight : 410g
Tip No. Welding Capacity Gas Pressure(Mpa)
O2 LPG
50 0.5~0.7 0.2 0.02 ~ 0.03
70 0.7~1.0
100 1.0~1.4
140 1.4~2.0
200 2.0~2.5
SH102
|
Middle Type Welding Torch
Length : 450mm / Weight : 420g
Tip No. Welding Capacity Gas Pressure(Mpa)
O2 LPG
200 2.0~2.3 0.2 0.02 ~ 0.03
235 2.3~2.5 0.3
250 2.5~3.2
315 3.2~4.0
400 4.0~4.5
450 4.5~5.0
500 5.0~6.0

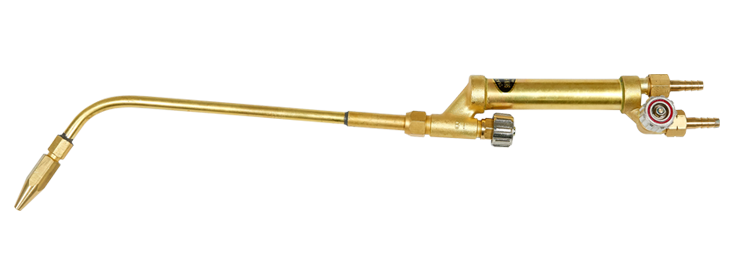

SH103
|
Large Type Welding Torch
Length : 550mm / Weight : 680g
Tip No. Welding Capacity Gas Pressure(Mpa)
O2 LPG
250 2.5~3.2 0.3 0.03
315 3.2~4.0
400 4.0~5.0
500 5.0~6.3
630 6.3~8.0 0.4
800 8.0~10
1000 10~12

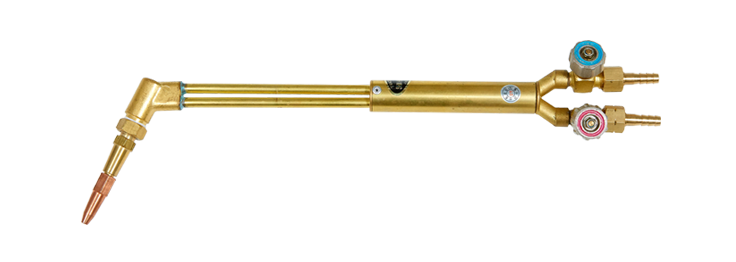

SH308
|
Medium Pressure Welding Torch(A1)
Length : 360mm / Weight : 480g
Welding Tip Welding Capacity Gas Pressure(Mpa)
O2 LPG
3 Pieces 0.5~0.8 1~4.5 0.1 ~ 0.3

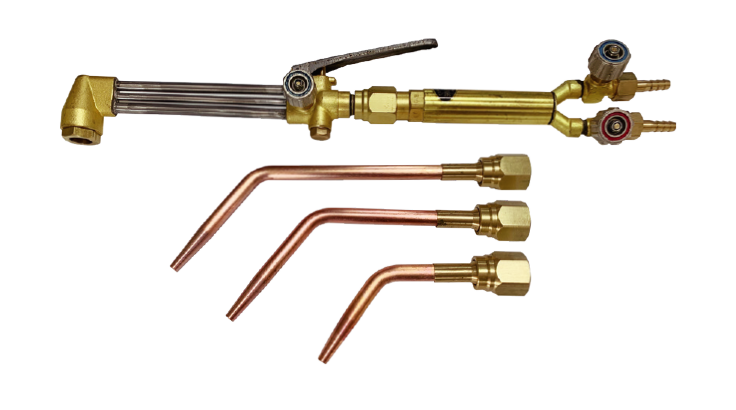

SH307
|
Medium Pressure Welding & Cutting Torch
Length : 435mm / Weight : 2,050g
Tip No. Capacity
Welding Cutting Welding(mm) Cutting(mm)
4 1 0.5~2.5 5 ~ 50
5 2
6 3
