CUTTING TORCH

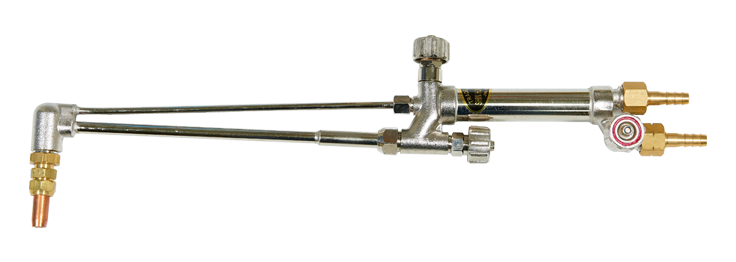

SH201, 203
|
Middle Type Cutting Torch for Acetylene / LPG
Customizable Length : 600, 800mm
Length : 430mm / Weight : 600g
Type model Tip No. Cutting
Capacity
Gas Pressure(Mpa)
O2 LPG
LPG SH203 1 3~10 0.2 0.03
2 10~20 0.25
3 20~30 0.3
Acetylene cutting torch needs to be customized!
Do not mix LPG and AC gas!

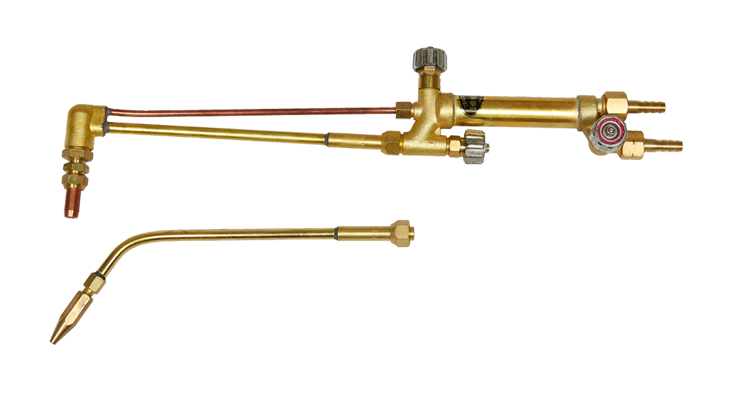

SH206
|
Middle Type Welding / Cutting Torch
Length : 430mm / Weight : 670g
Welding Tip Cutting Tip Capacity
7 Pieces 3 Pieces Same Capacity of Middle type
Welding & Cutting Torch

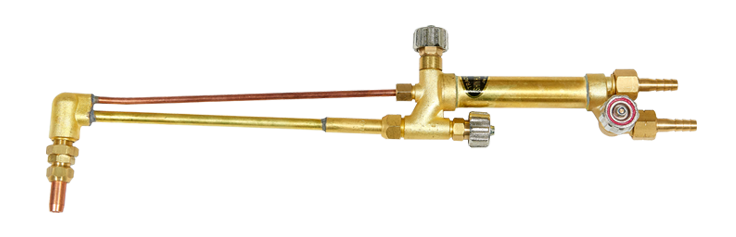

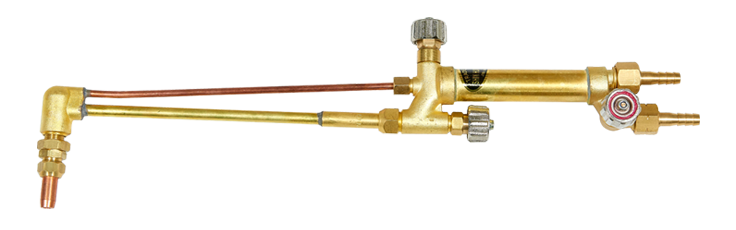

SH202, 205
|
Large Type Cutting Torch for Acetylene / LPG
Customizable Length : 600, 800mm
Length : 520mm / Weight : 840g
Type model Tip No. Cutting
Capacity
Gas Pressure(Mpa)
O2 LPG
LPG SH205 1 3~15 0.3 0.04
2 15~20
3 40~80
Acetylene cutting torch needs to be customized!
Do not mix LPG and AC gas!

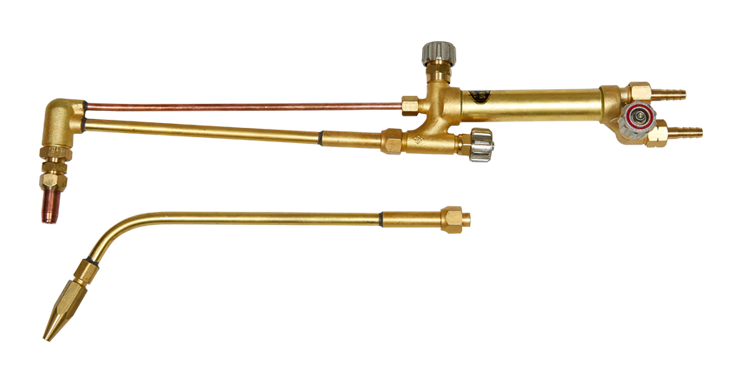

SH207
|
Large Type Welding / Cutting Torch
Length : 520mm / Weight : 1,050g
Welding Tip Cutting Tip Capacity
7 Pieces 3 Pieces Same Capacity of Middle type
Welding & Cutting Torch
