PRODUCTS
We will become the emerging industry that continuously develops
the technology and improves the product quality.

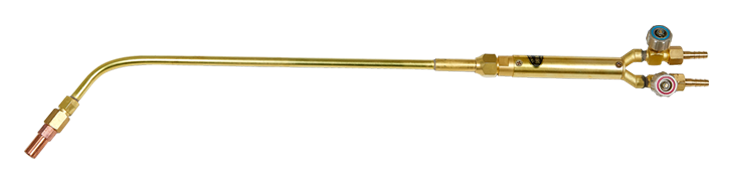

HEATING TORCH
SH309
|
Line Heating Torch

Tip No. Length(mm) Weight(g) O2(Mpa) LPG(Mpa)
1,000~
3,000		 740~1,000 640~960 0.4~0.8 0.02~0.08

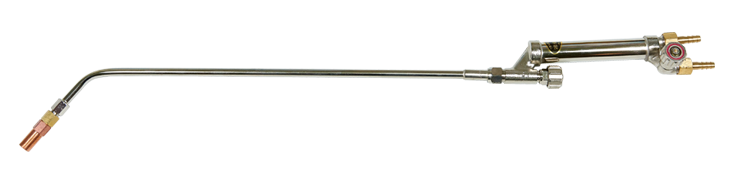

'SH309-L' is light weight type.
This relieves fatigue in field work!

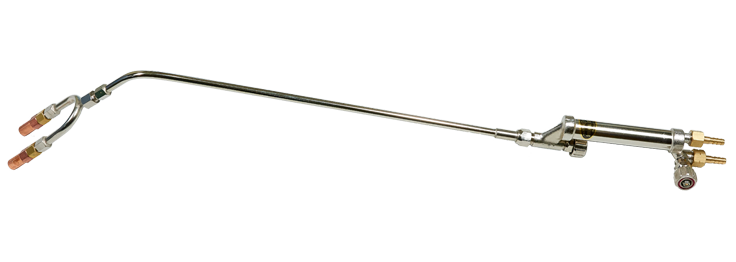

SH305
|
Two-Flame Heating Torch

Tip No. Length
(mm)		 Weight
(g)		 Gas Pressure(Mpa)
O2(Mpa) LPG(Mpa)
250~3000 775 865 0.3~0.8 0.02~0.08

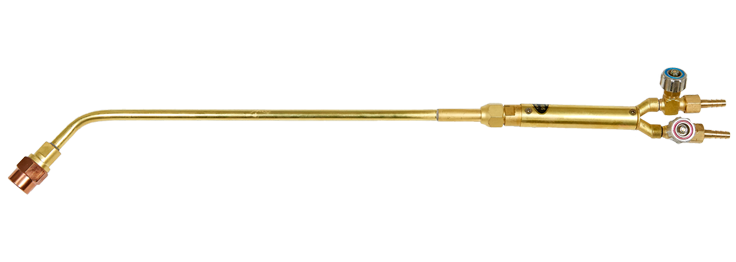

SH301
|
LPG Heating Torch

Type Tip No. Length
(mm)		 Weight
(g)		 Gas Pressure
(Mpa)		 Flow Quantity
O2 LPG (LPG) L/H (O2) L/H
A 3,500~
5,000		 740 620 0.3~
0.4		 0.03 1,000~
3,000		 5,000~
10,000
B 3,500~
5,000		 1,000 890 0.4~
0.5		 0.04 3,500~
5,000		 14,000~
20,000
